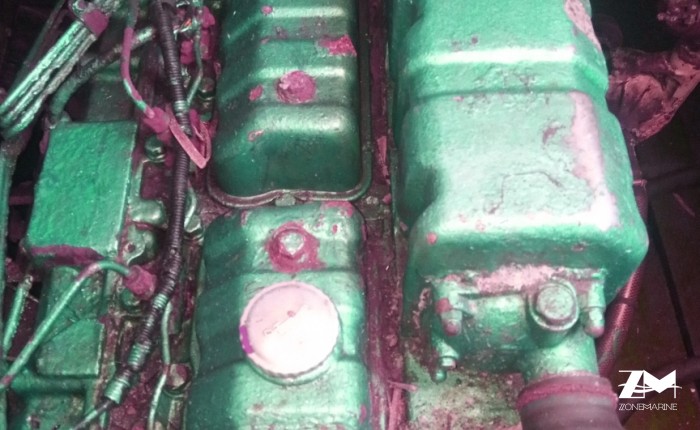

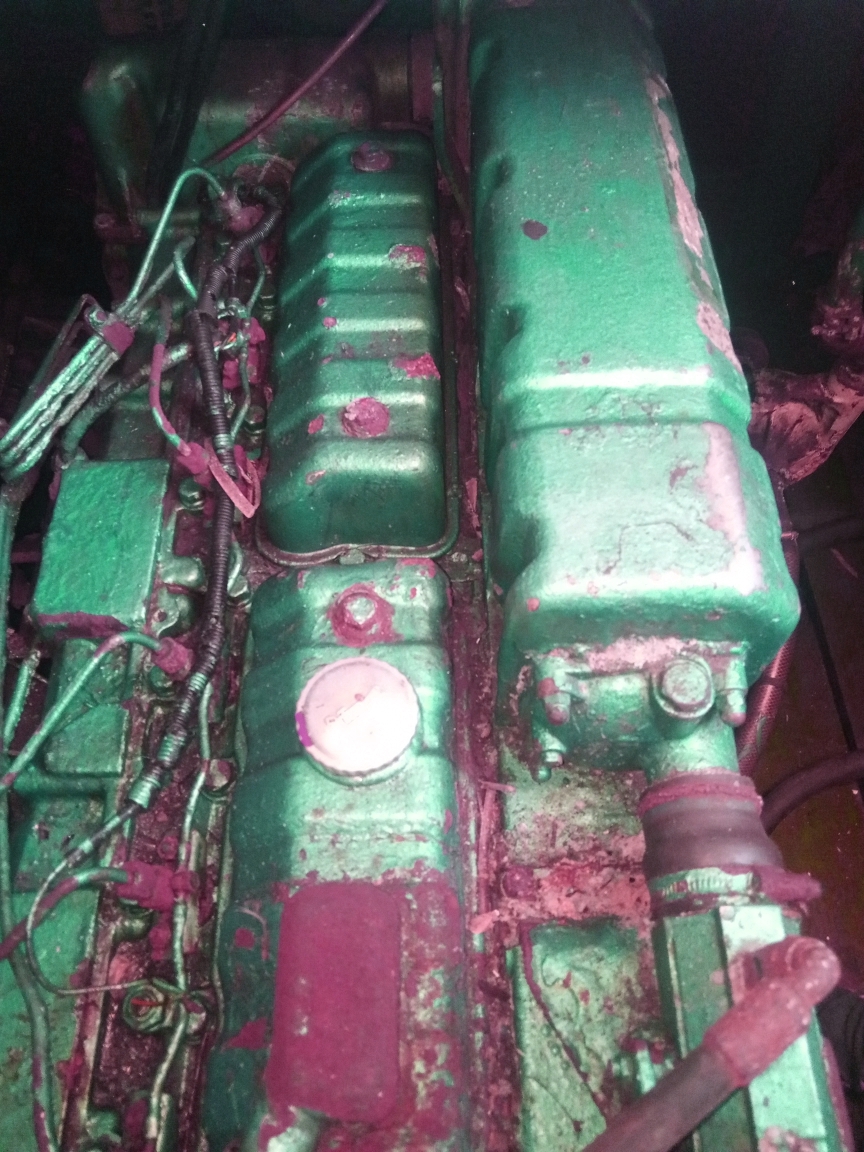

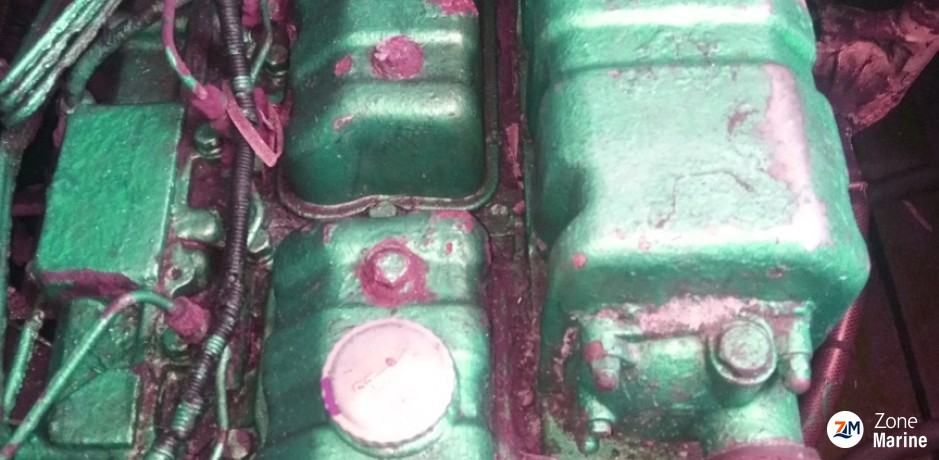

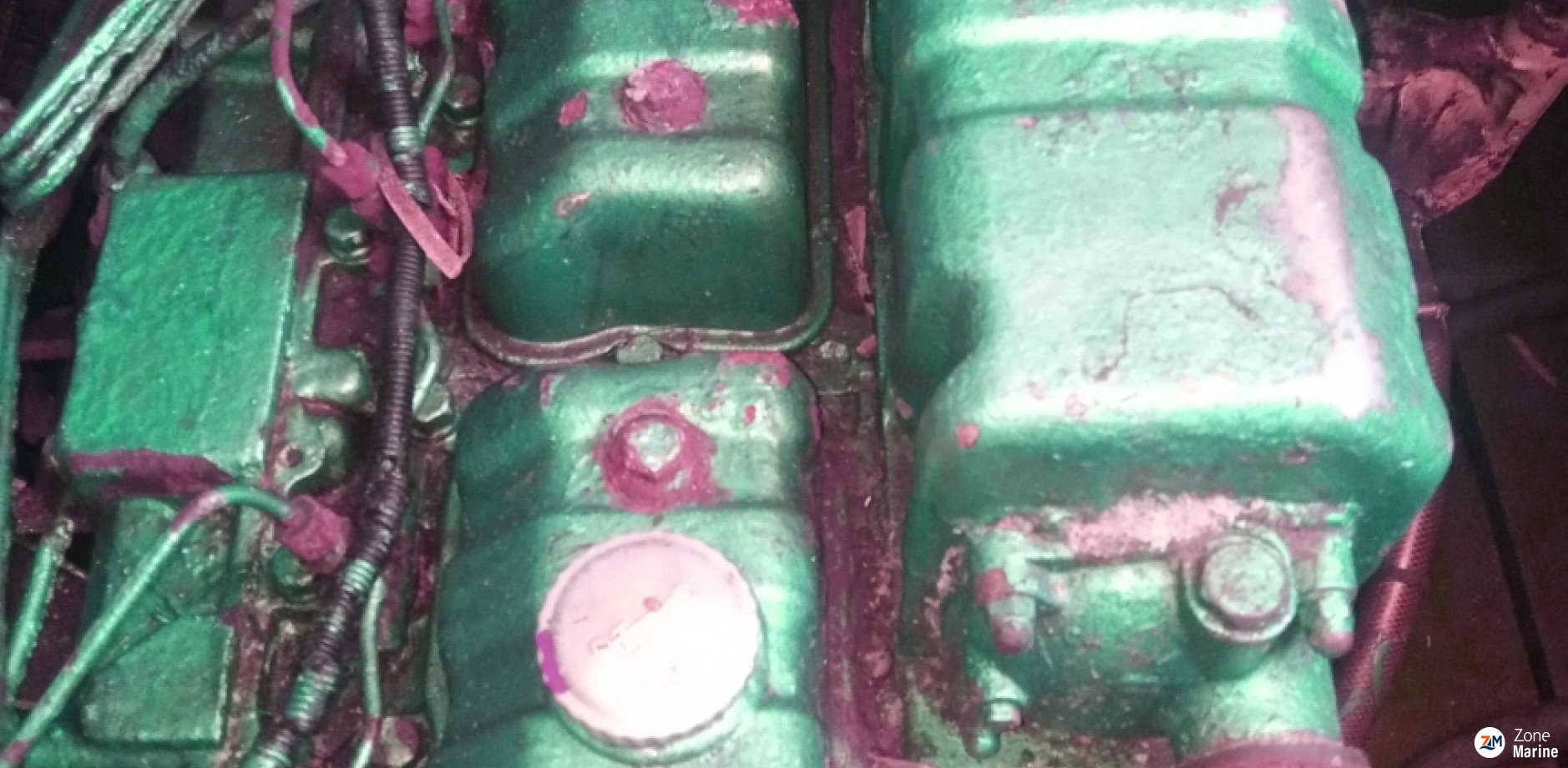

Description
State: re -use engine (engine that has become without use, but still functional)
Controlled engine on test bench
Replaces ref. SAVIEM # 5000339919 - Renault V.I. # 5000212610 -
Weight: 450 kg
Engine, manufacturer: Saviem
Family: 2001
Type: 797
Model: 20
Direct injection diesel engine
Renault Diesel engine for Saviem (Société Anonyme des Vehicles Infudustriels and Mécanique Equipment), the brand was born in December 1955, from the merger of Latil, Renault and Somua heavyweight companies.
Construction year: 1970/1980
Weight: 450 kg
Corresponding engines: U5M62, D0216MXU Euro 1
Number and arrangement of cylinders: 6 online, vertical
Displacement: 5,489 cc
Bore: 103 mm - Race: 112 mm
Maximum power: 160 CV SAE
Maximum power: 118 kW
Maximum diet: 2,900 rpm
Maximum torque: 40.2 M.Dan
Diet: 1700 rpm
Volumetric ratio: 17.5/1
Dimensions, main spaces of size, see attached board:
A: 1,600 mm
H: 1,100 mm
M: 342 mm
N: 414 mm
O: 220 mm
P: 230 mm
The engine is delivered according to the description below:
Complete engine block
With the "'' engine oil" power circuit and the cooler.
The engine comes in France with its engine oil. Before the engine start, oil emptying is to be expected and replacing the filter is to be expected.
with the "diesel" food circuit
without the exhaust line (collector ...)
with the water pump, but without the refoidal circuit
without the air intake line (collector ...)
without the air compressor,
without the starter.
Mounts on Saviem JN 55 vehicles, Jn 60, Jn 65 - Renault V.I.
VF6JNIA120001230
The engine comes in France with its engine oil. Before the engine is set up, the oil emptying and replacing the filter is to be expected.
Guaranteed engine at its delivery during: 3 months
Packaging, on wooden palette, dimensions (long. X width x high.) 160 x 80 x 110 cm, volume for transport 1,400 m3 - weight 500 kg
Sale unit: the engine
